Element tns:xat2

Namespace

http://xat2.etai.fr

Annotations

Xat2 est l' objet principal qui contient toutes les informations.

Un objet Xat2 représente un message à envoyer ou à recevoir.
L'objet Xat2 est transporté par le protocole.
Il contient toutes les données techniques et métier du message.

Xat2 is the main object which contains all informations.

An object Xat2 represents a message to send or to receive.
Xat2 object is being transported by the protocol.
It contains all technical data and business message

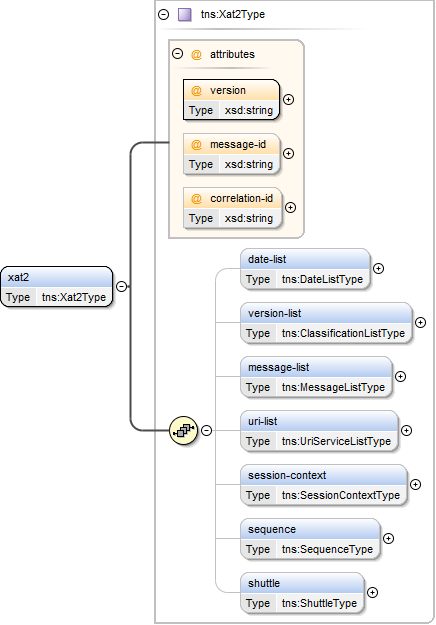

Diagram

Type

tns:Xat2Type

Properties

content:

complex

Model

tns:date-list{0,1} , tns:version-list{0,1} , tns:message-list{0,1} , tns:uri-list{0,1} , tns:session-context{0,1} , tns:sequence{0,1} , tns:shuttle{0,1}

Children

tns:date-list, tns:message-list, tns:sequence, tns:session-context, tns:shuttle, tns:uri-list, tns:version-list

Instance

<tns:xat2 correlation-id="" message-id="" version="">
  <tns:date-list>{0,1}</tns:date-list>
  <tns:version-list>{0,1}</tns:version-list>
  <tns:message-list>{0,1}</tns:message-list>
  <tns:uri-list>{0,1}</tns:uri-list>
  <tns:session-context>{0,1}</tns:session-context>
  <tns:sequence>{0,1}</tns:sequence>
  <tns:shuttle>{0,1}</tns:shuttle>
</tns:xat2>

Attributes

QName	Type	Use
correlation-id	xsd:string	optional
message-id	xsd:string	optional
version	xsd:string	required

Source

<xsd:element name="xat2" type="tns:Xat2Type">

</xsd:element>
